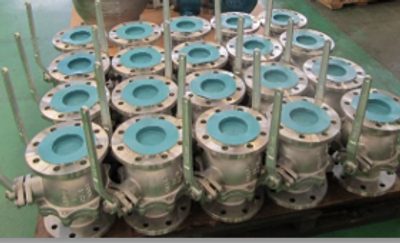

Floating Ball Valves for refinery and other process applicat

• Design: API 608, API 6D
• 1/2" to 10"
• ANSI CLASS: 150#, 300#, 600#
• Uni Body or Bolted Body
• Full and Reduced Ports
• RF Flanged Ends

• A216 WCB Cast Steel Body
• A105 Forged Steel Body
• Stainless Steel Body
• 316ss Trim
• Metal to Metal Trim

We can offer you a complete range of floating ball valves in a size range of 0.5” to 12” in pressure ratings of up to class 2500.

Our valves are designed, manufactured, and tested in accordance with respective API, ASME, and ANSI standards, for instance, ASME B16.34, API 6D, API-607, API 608, API 598, ASME B16.5, ASME B16.10, ASEM B16.25, NACE, In the standard designs, floating ball valves are specified for transmission pipeline, pumping stations, compressor stations, gas processing plants, rejection units, offshore platforms, and chemical processing.

• Bi-directional shut-off with bubble-tight sealing capability
• Equalized cavity pressure
• Ball position indication and locking device
• Multiple seal for protection against external leakage
• Blowout proof stem design
• Live-loaded stem packing design
• Anti-static device
• ISO 5211 actuator mounting pad
• Metal-to-metal contact fire safe to API 607 or API 6FA
• NACE compliance and fully comply with MR-0175
• Metal-seated design is upon request
• Cryogenic design (-196 °C or 320 °F) upon request;
